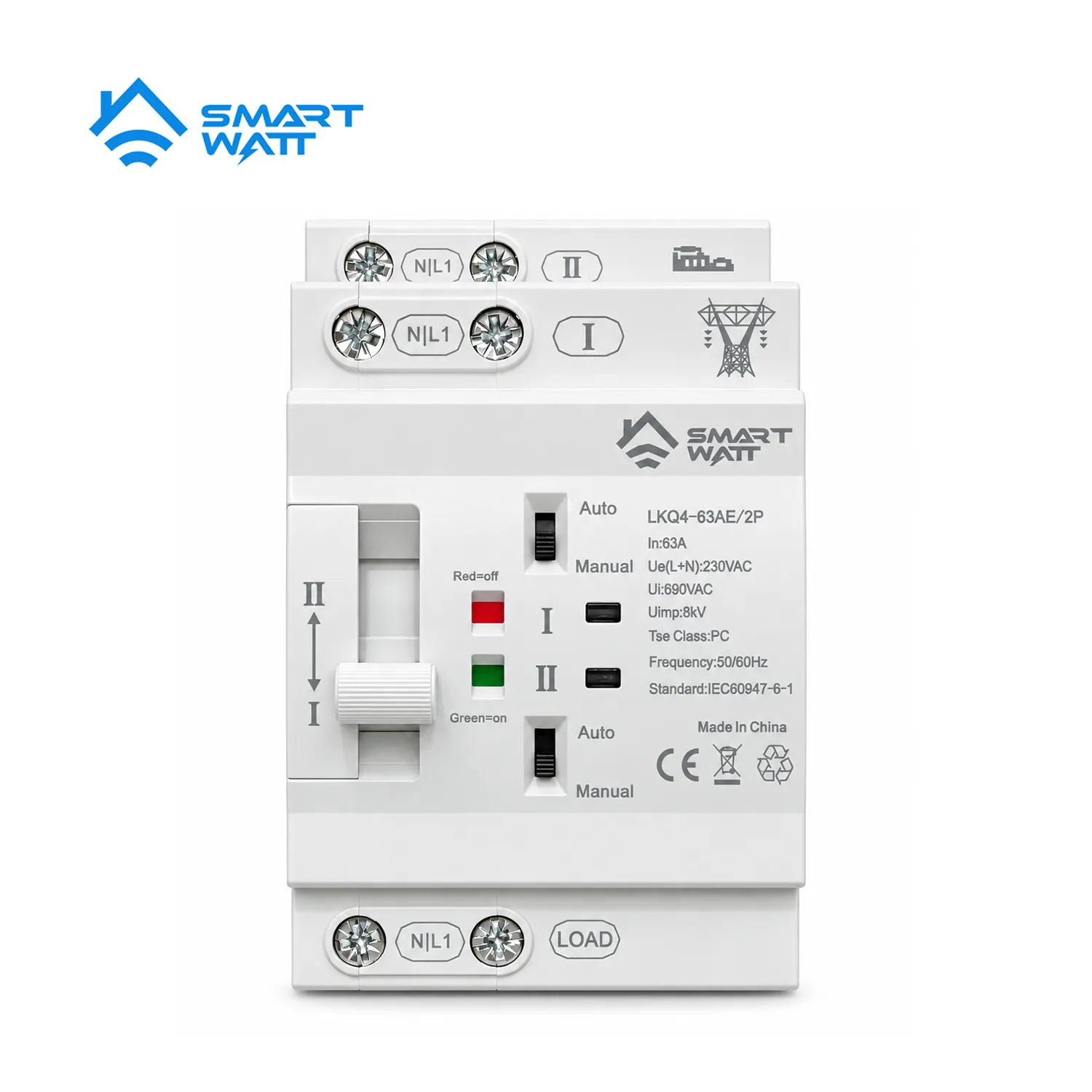

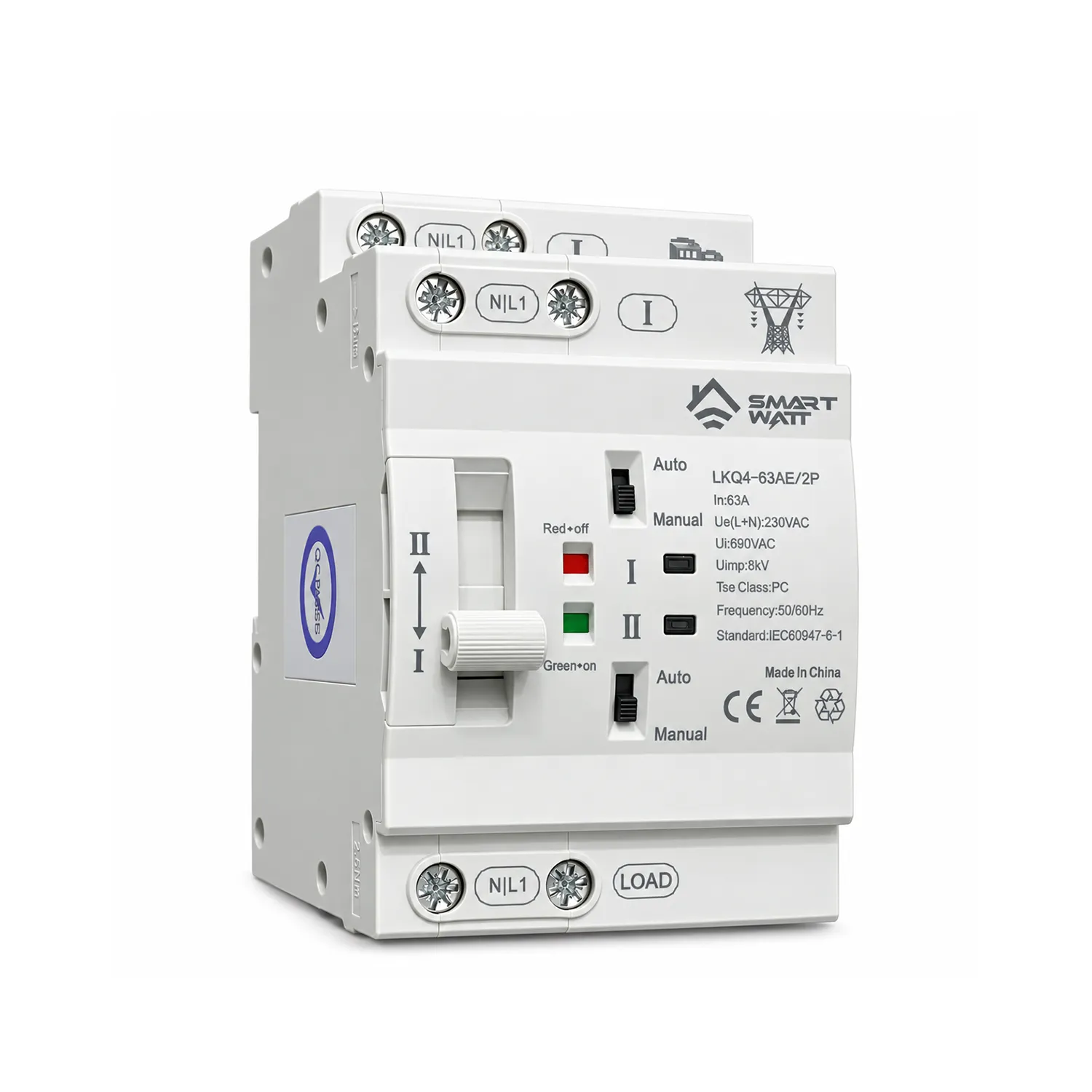

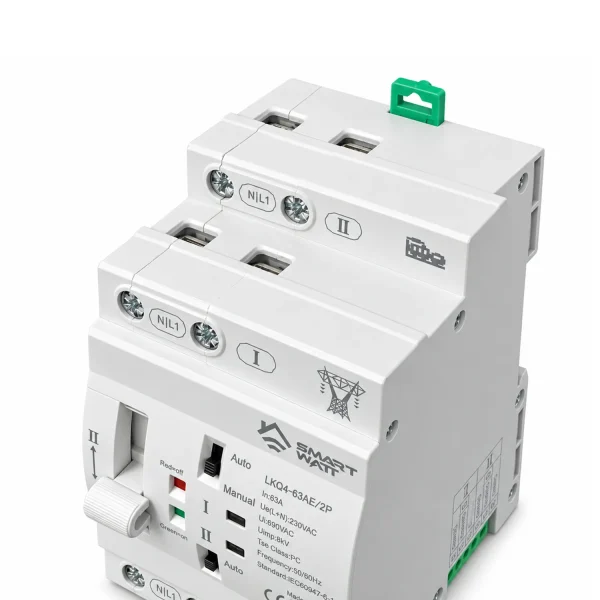

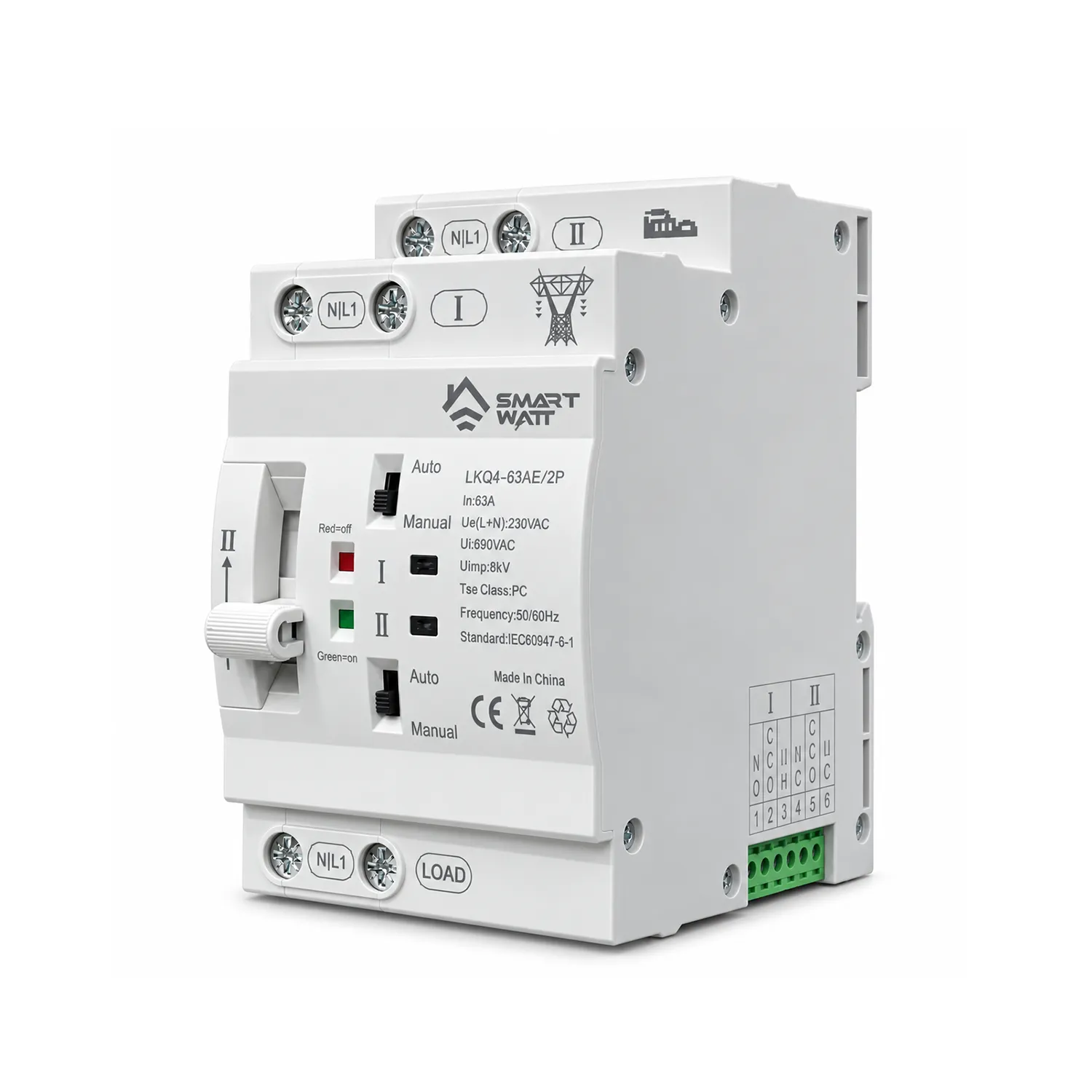

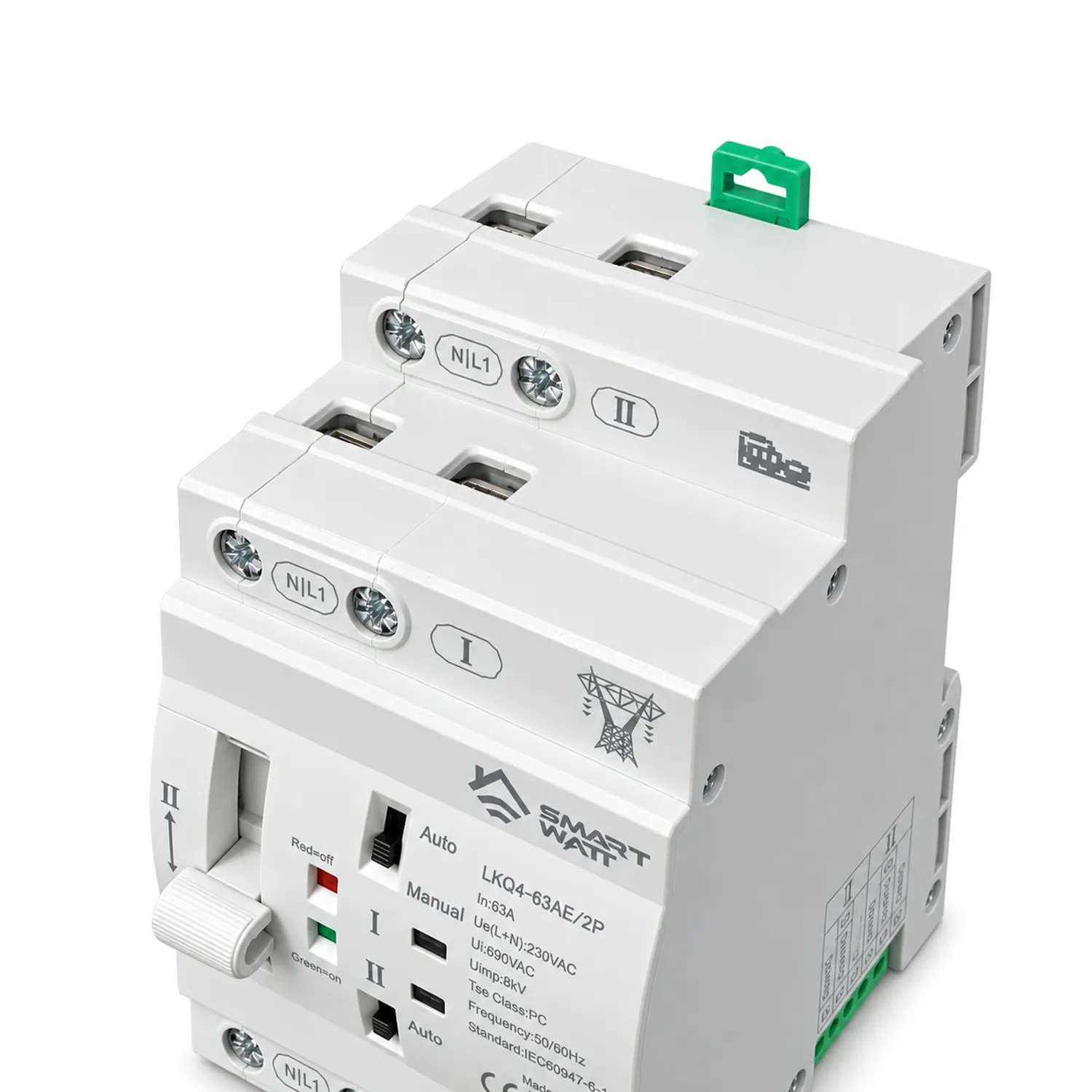

Smart Watt 80A ATS 2P Single Phase Automatic Transfer Switch
Ensure a reliable power supply with the Smart Watt 80A ATS 2P Single Phase Automatic Transfer Switch. Designed to automatically transfer your electrical load between two power sources, it helps maintain power continuity when the primary source experiences a power failure, phase loss, under-voltage, or over-voltage condition.
The ATS continuously monitors the voltage of Source 1 and automatically transfers the load to Source 2 when the voltage becomes abnormal. Once Source 1 returns to a stable voltage range, the switch automatically transfers the load back after a 30-second delay.

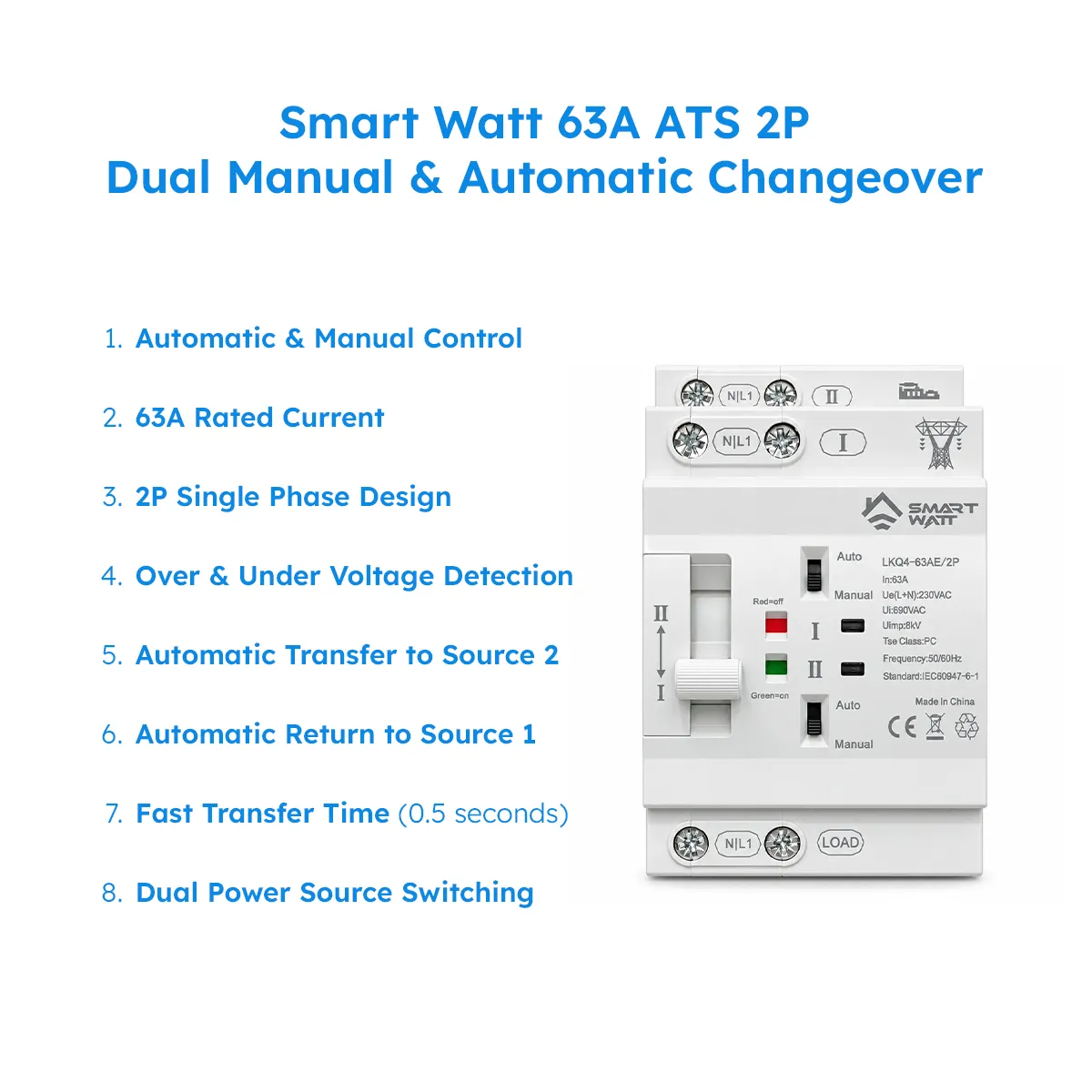

Key Features of the Smart Watt 80A ATS:
1- Automatic & Manual Control
Operate the ATS automatically or manually according to your requirements. Automatic mode manages the transfer between the two power sources, while manual control allows you to select the desired source when needed.
2- 63A Rated Current
Designed to handle loads up to 63A, making it suitable for a wide range of residential and commercial single-phase applications.
3- 2P Single Phase Design
The 2-pole single-phase design is suitable for compatible single-phase electrical systems and allows switching between two power sources.
4- Over & Under Voltage Detection
The ATS continuously monitors the voltage of Source 1. If the voltage falls below 175V, rises above 275V, or the source experiences phase loss, the ATS automatically transfers the load to Source 2, provided Source 2 is within the acceptable voltage range.
5- Automatic Transfer to Source 2
When Source 1 experiences phase loss, under-voltage below 175V, or over-voltage above 275V, the switch automatically transfers the connected load to Source 2.
Source 2 must have a voltage between 187V and 253V for the ATS to transfer the load to the backup source.
6- Automatic Return to Source 1
When Source 1 voltage is restored and remains within the 187V to 253V range, the ATS automatically switches the load back to Source 1 after a 30-second delay.
This delay helps prevent unnecessary switching caused by short-term voltage fluctuations.
7- Fast Transfer Time
The transfer time between the two power sources is approximately 0.5 seconds, helping minimize interruption when switching between available power sources.
8- Dual Power Source Switching
The ATS is designed to manage two independent power sources, allowing the connected load to automatically transfer between the primary and backup supply when required.
9- Robust Construction
Built with a robust construction for reliable operation in demanding electrical environments.
10- High Durability
Designed for long-term use with durable construction and reliable source-switching performance.
Why Choose the Smart Watt 80A ATS?
The Smart Watt 80A ATS 2P Single Phase Automatic Transfer Switch provides automatic and manual control between two power sources with built-in voltage monitoring and protection.
With 63A capacity, over/under voltage detection, phase-loss detection, 0.5-second transfer time, 30-second return delay, and robust construction, it is a practical solution for homes, offices, shops, generators, backup power systems, and other compatible single-phase installations.
