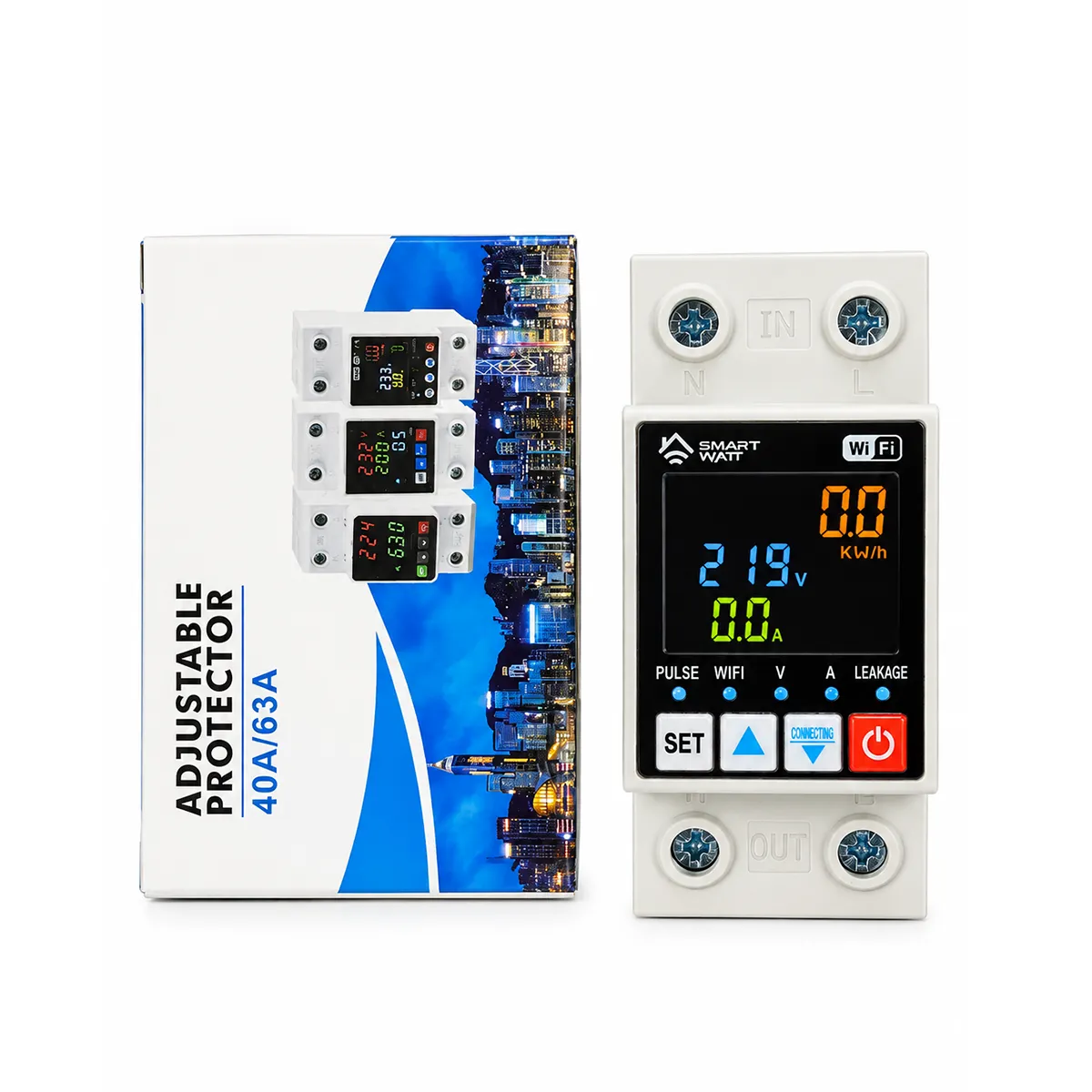

Smart Watt 63A Wifi Breaker 18in1 SWB63-18D

Description

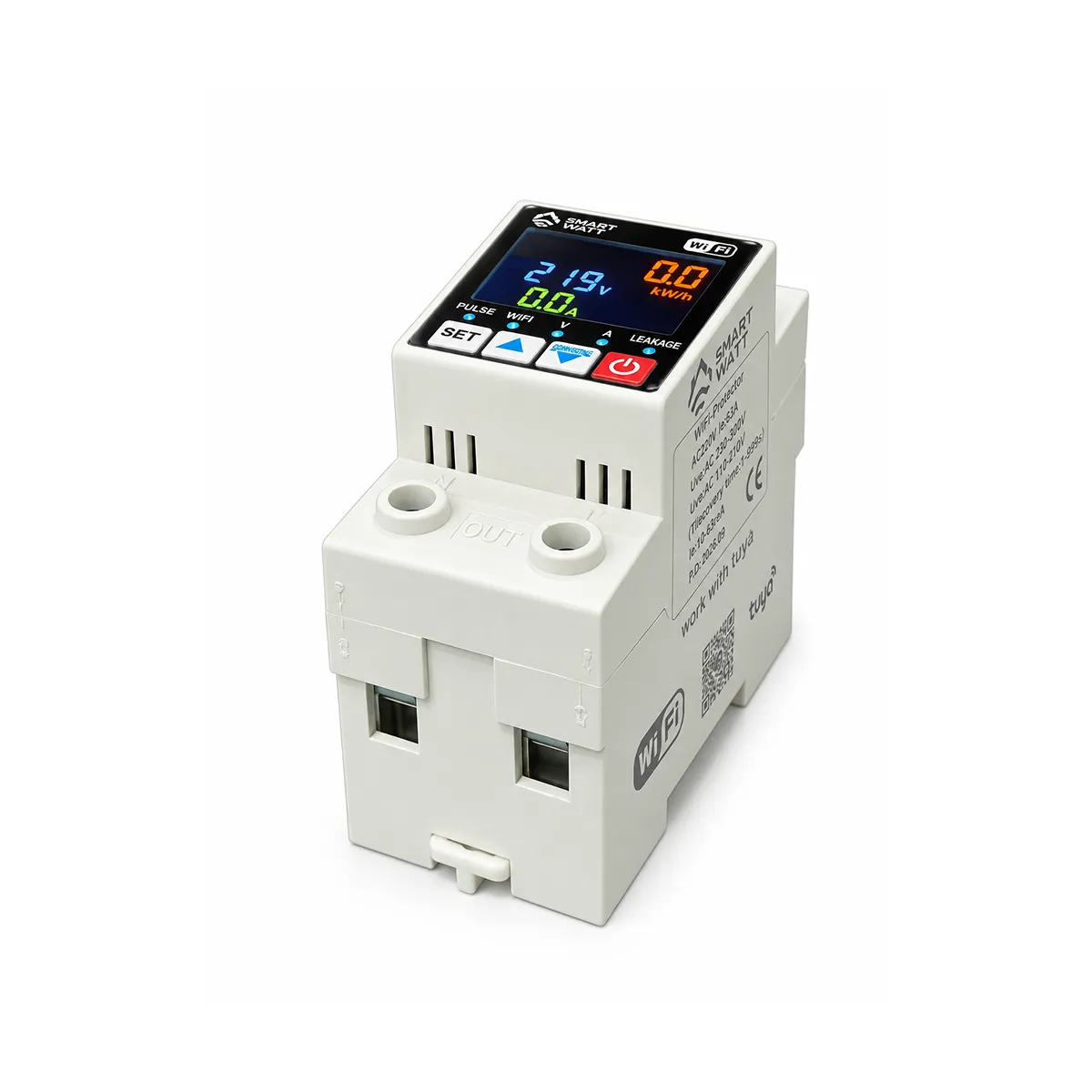

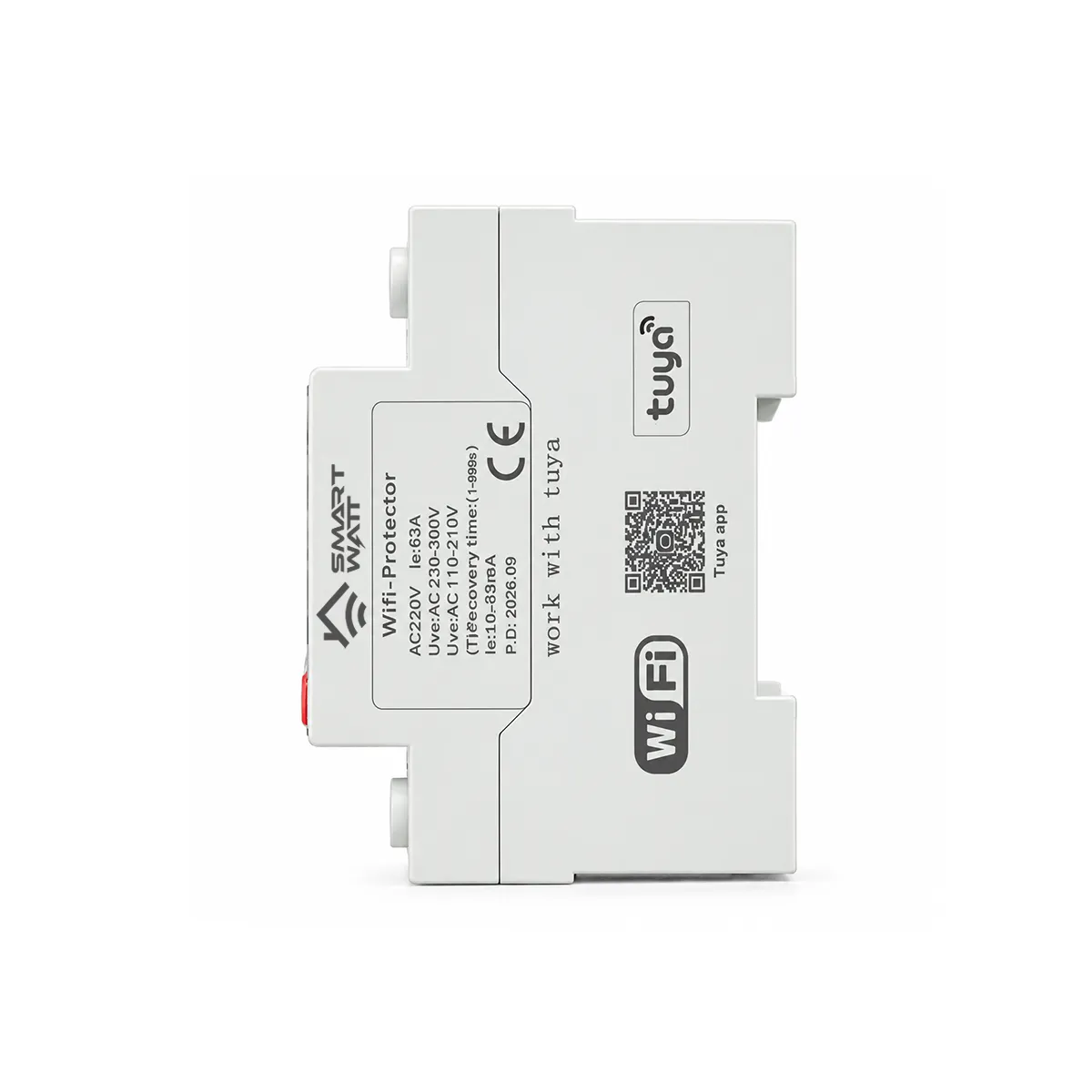

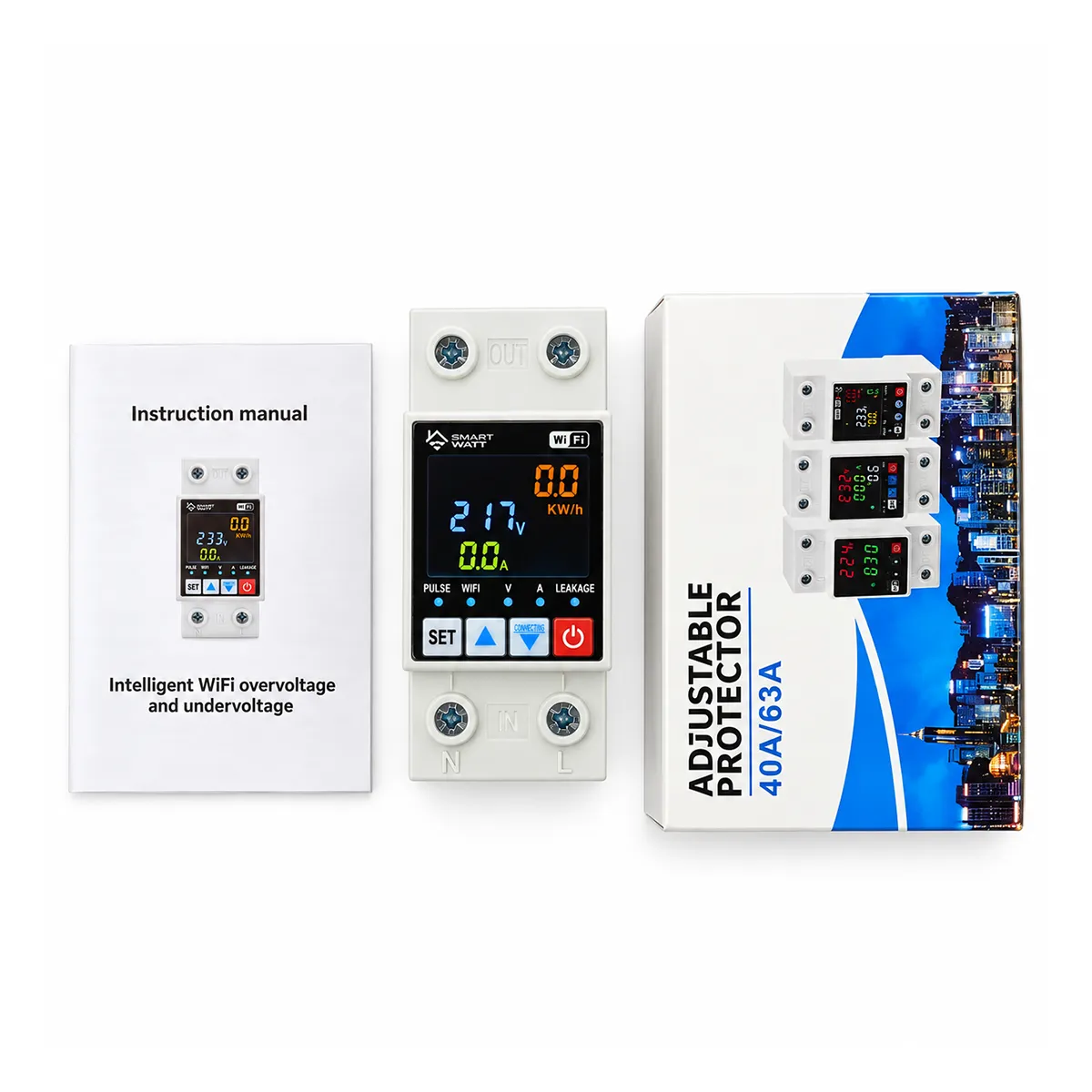

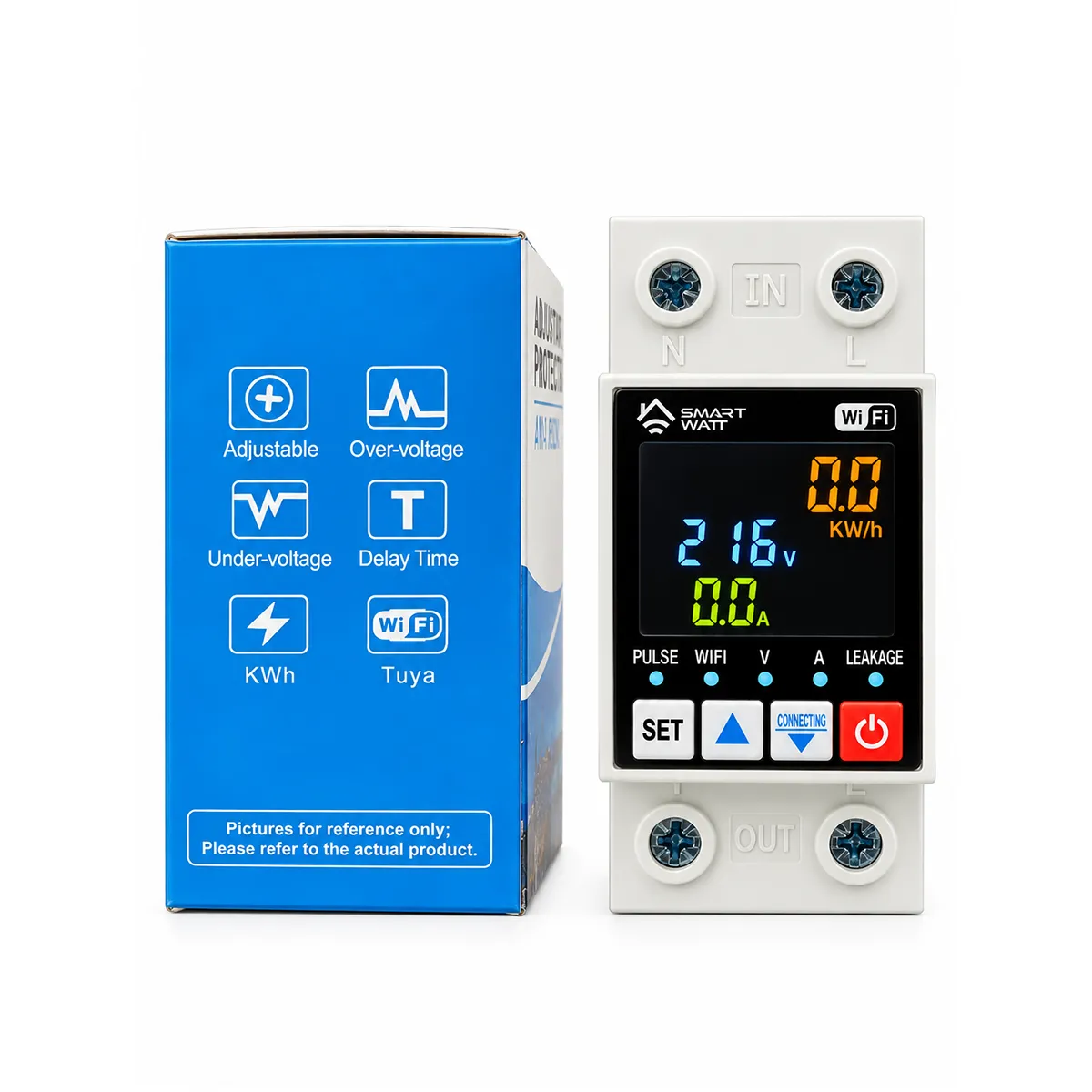

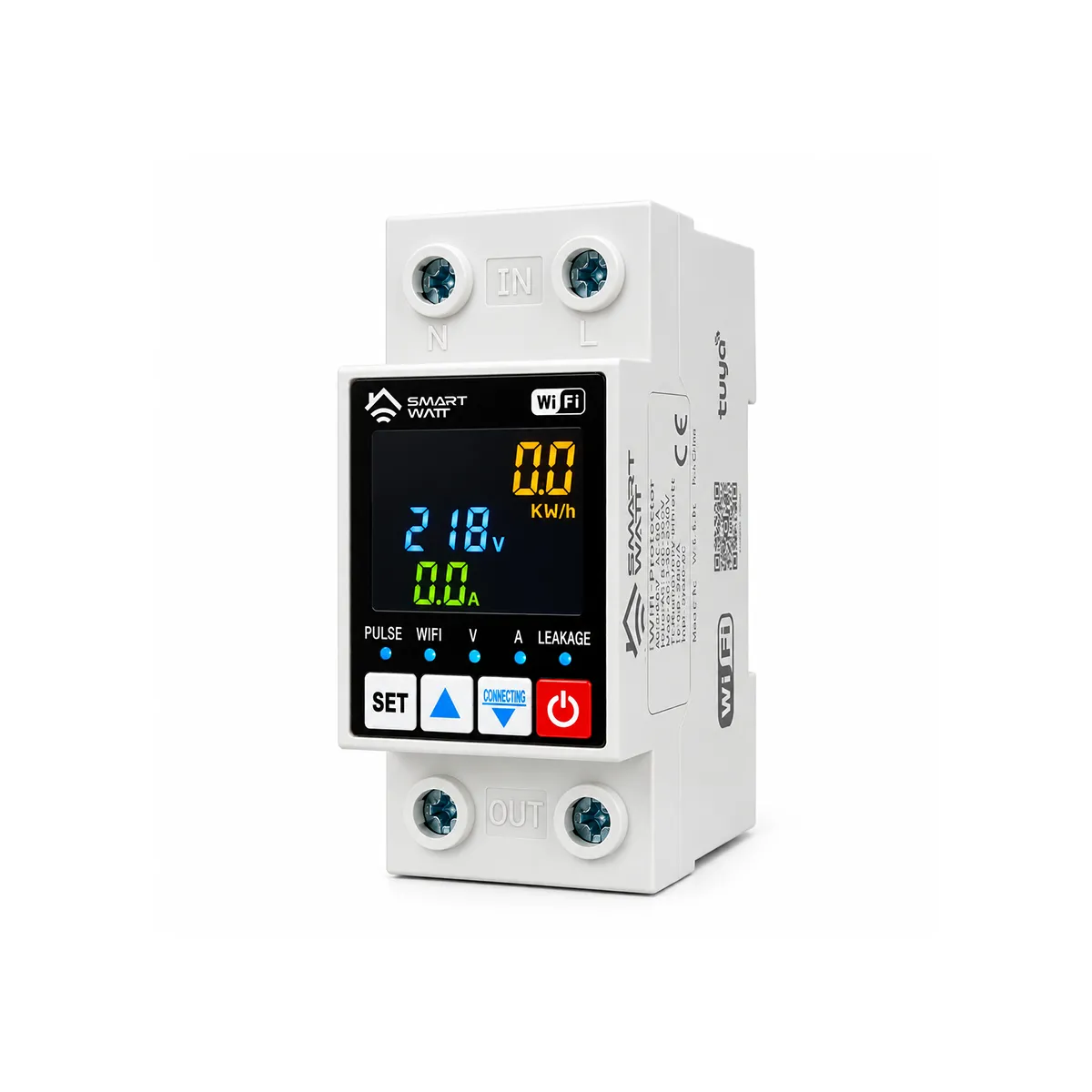

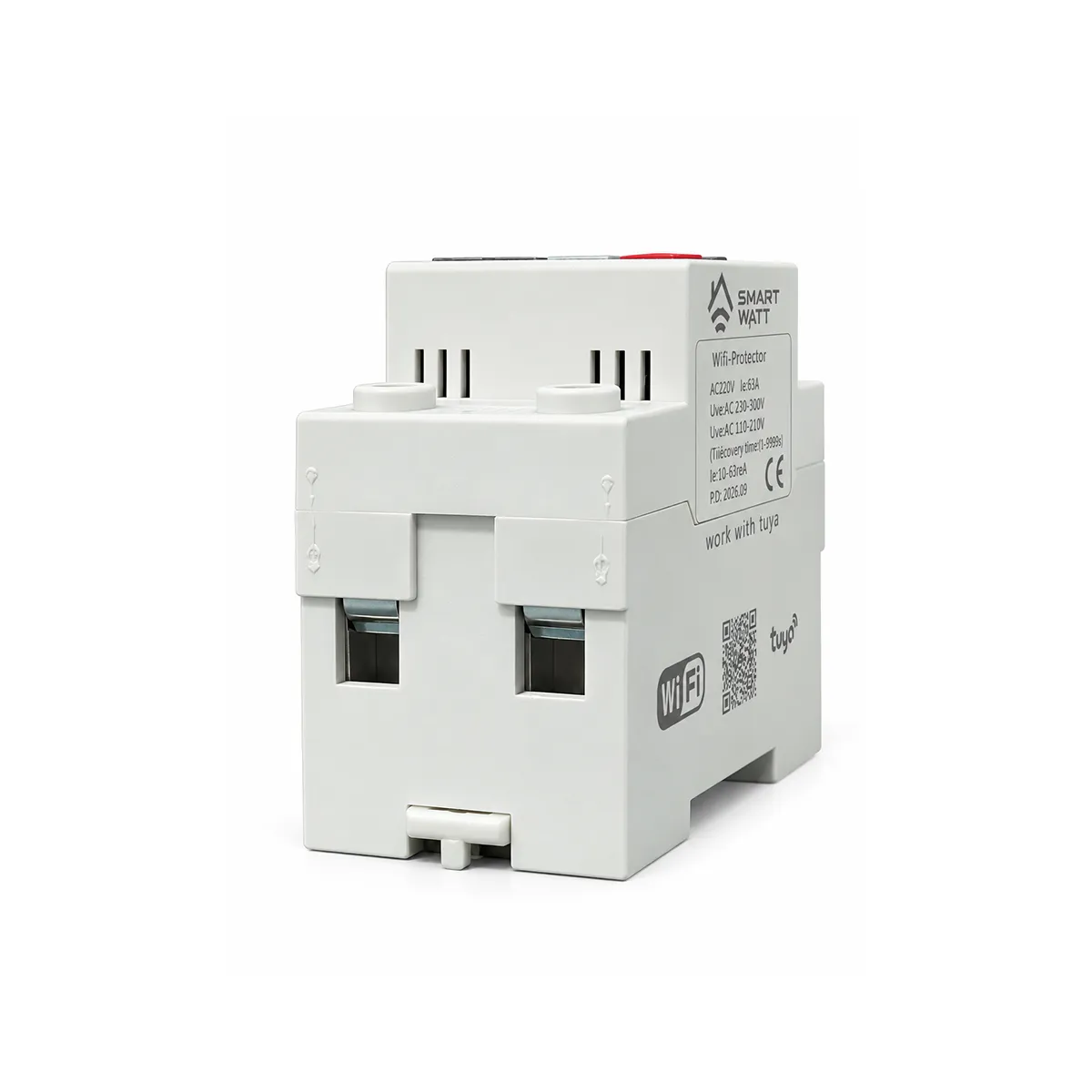

Smart Watt 63A WiFi Breaker 18in1

Take control of your electrical system with the Smart Watt 63A WiFi Breaker 18in1. Designed for modern homes, offices, and businesses, it combines smart remote control, detailed power monitoring, and multiple electrical protection features in one device. Control your power, monitor electricity usage, create schedules, and manage protection settings directly from your smartphone.

Key Features of the Smart Watt 63A WiFi Breaker:

1- Smart App Control
Control the breaker remotely using the Tuya or SmartLife app. Turn the power ON or OFF and check important electrical data directly from your smartphone.

2- Voice Control
Control the breaker with Amazon Alexa or Google Assistant. Use simple voice commands to turn the connected power ON or OFF.

3- Advanced Power Monitoring

Monitor your electrical system with detailed real-time and historical power data.

• Real-Time Monitoring: View Voltage (V), Current (A), Active Power (kW), Reactive Power, Apparent Power, Power Factor, Energy (Units), Frequency (Hz), and Temperature (°C).
• Historical Monitoring: Review your energy consumption by day, month, or year to better understand and manage your electricity usage.

4- Expense Management (Unit Lock Function)

Set a unit limit and allow the breaker to control the power when the selected limit is reached. This can help you manage electricity consumption under Pakistan’s slab-based billing system.

5- Timer and Scheduling

Automate your electrical system by setting specific times for the breaker to turn ON or OFF. You can create multiple schedules based on your requirements.

6- High Temperature Protection

The breaker monitors its operating temperature and disconnects the power when the temperature reaches the selected limit. This helps reduce the risk of overheating.

7- Adjustable Overcurrent Protection (1-63A)

Set the overcurrent protection limit from 1A to 63A. The breaker disconnects the power when the current exceeds the selected limit.

8- Adjustable Overvoltage Protection (240-300V)

Set the overvoltage protection limit from 240V to 300V. The breaker disconnects the power when the voltage rises above the selected limit.

9- Adjustable Undervoltage Protection (80-200V)

Set the undervoltage protection limit from 80V to 200V. The breaker disconnects the power when the voltage drops below the selected limit.

10- Overcurrent Protection Delay

Set a delay before overcurrent protection activates. This can help reduce unnecessary trips caused by short-duration current spikes.

11- Overvoltage Protection Delay

Set a delay before overvoltage protection activates. This can help reduce unnecessary trips caused by short-duration voltage changes.

12- Undervoltage Protection Delay

Set a delay before undervoltage protection activates. This can help reduce unnecessary trips caused by short-duration voltage drops.

13- Overvoltage Recovery Time

Set the time the breaker waits before restoring power after the voltage returns to a safe level. The default recovery time is 30 seconds.

14- Power-On Delay Time

Set a delay before the relay turns ON after power is restored. The default delay time is 5 seconds.

15- Relay Status Memory

Choose how the relay behaves when power returns. Select ON, OFF, or Memory. In Memory mode, the relay returns to its previous ON or OFF state.

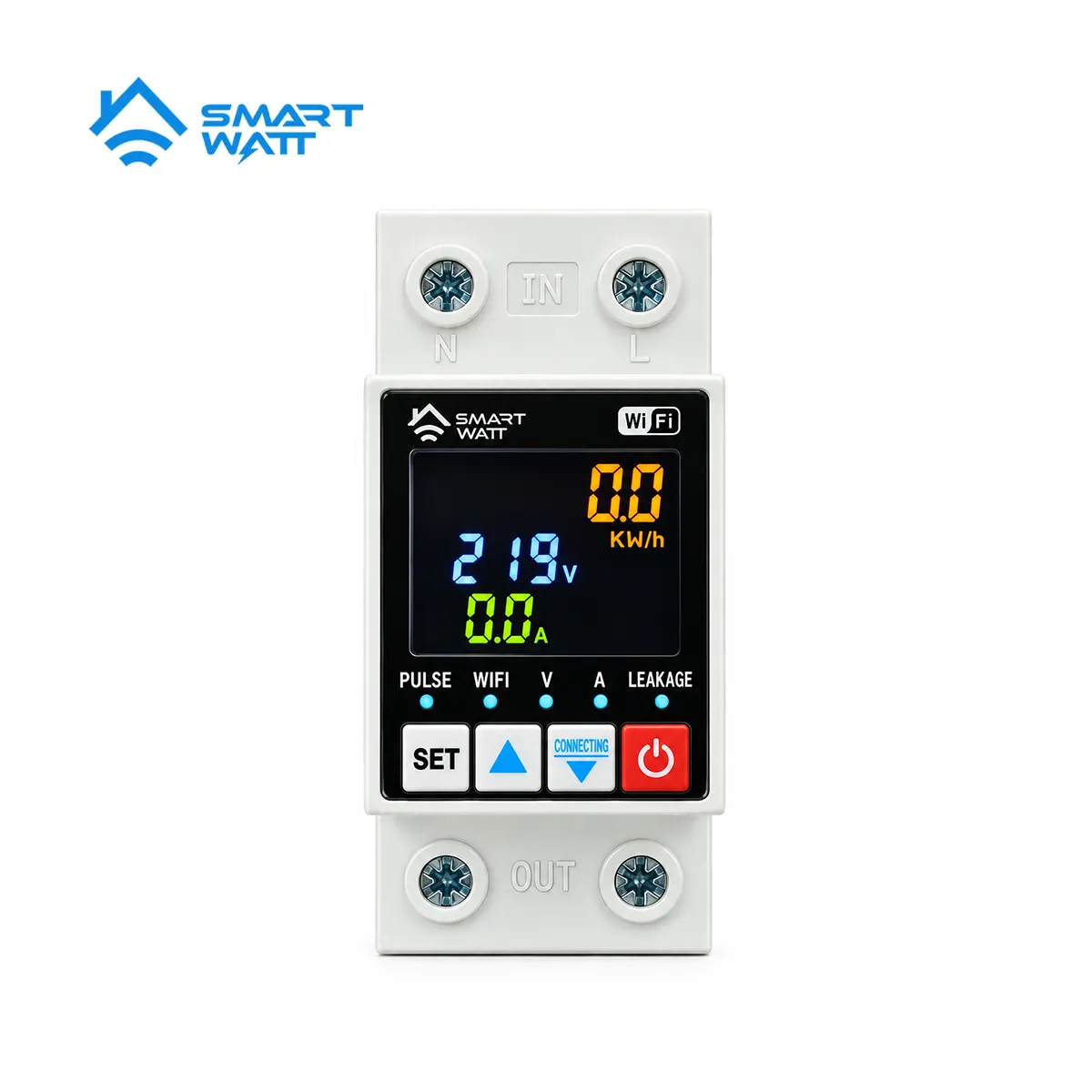

16- Built-In Display Screen

View important electrical data directly on the built-in display. This allows you to check key readings without opening the mobile app.

17- Factory Reset Settings

Reset the breaker to its original factory settings whenever needed. This makes it easier to configure the device again.

18- Leakage Current Protection

The breaker monitors for leakage current and can disconnect the power when leakage is detected. This provides an additional layer of electrical protection and helps reduce risks associated with current leakage.

Why Choose the Smart Watt 63A WiFi Breaker 18in1?

The Smart Watt 63A WiFi Breaker 18in1 combines smart control, detailed power monitoring, and multiple electrical protection functions in one convenient device.

Monitor your electricity usage, manage your unit limit, create schedules, and control the breaker remotely from your smartphone. You can also configure voltage, current, temperature, and leakage protection settings according to your requirements.

With Tuya and SmartLife app control, voice control, power monitoring, scheduling, and multiple protection features, the Smart Watt 63A WiFi Breaker 18in1 is a practical solution for modern homes, offices, shops, and businesses.
